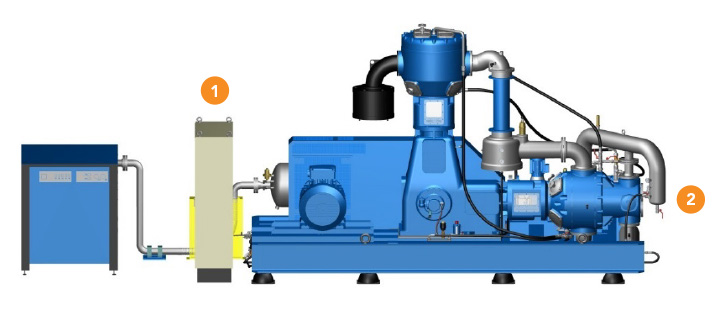

Fully interconnected with the whole compressor package. Includes star delta starter and PLC controller.
2Compressor Bare Unit: 20 to 40 bar
3 stage, 3 cylinders, 2 piston rod assemblies
Electric motor & V-belt transmission.
Skid mounted on anti-vibration mounts, no specific foundation. Automatic draining system.

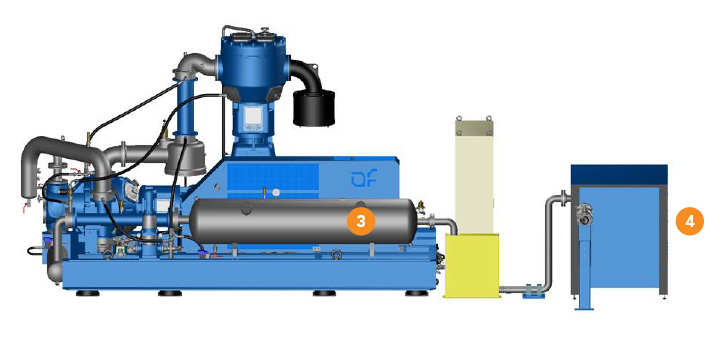

3HP Air Receiver:
Hot galvanised – horizontal or vertical.
Equipped with Bekomat drain system.
4HP Air Dryer:
Stainless steel dryer with integrated 1µ filter. Dew point alarm and Bekomat drain system.

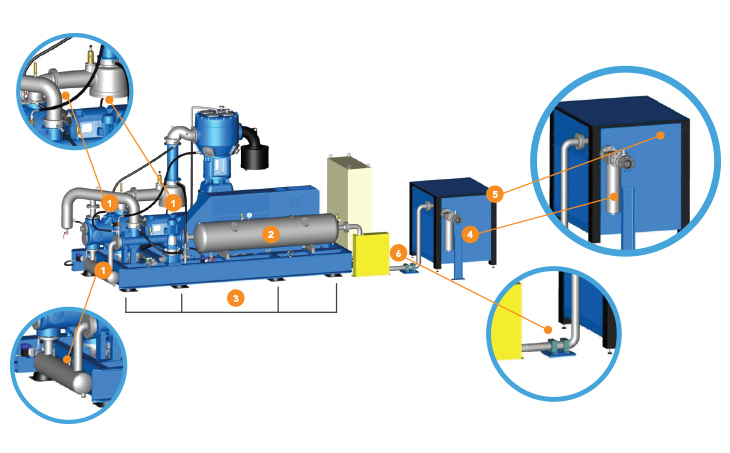

1 2Interconnecting Pipework,
Separators + HP Receiver
Hot galvanising, nickel plating.
Package equipped with Bekomat drain system.
Skid mounted on anti-vibration mounts.
No specific foundation.
Optional HP submicronic filtration, 0,01µ.
Activated carbon with odor removal…
5HP Air Dryer
Stainless steel dryer with integrated 1µ filter.
Dew point alarm.
Bekomat drain system.
640 bar Connections
Stainless steel discharge flex line with safety guard.
Stainless steel inter-connecting 40 bar pipe between compressor skid, receiver & dryer inlet.
