Range of capacity 20 – 40 bar

AF Range

Range of capacities 20 – 40 bar

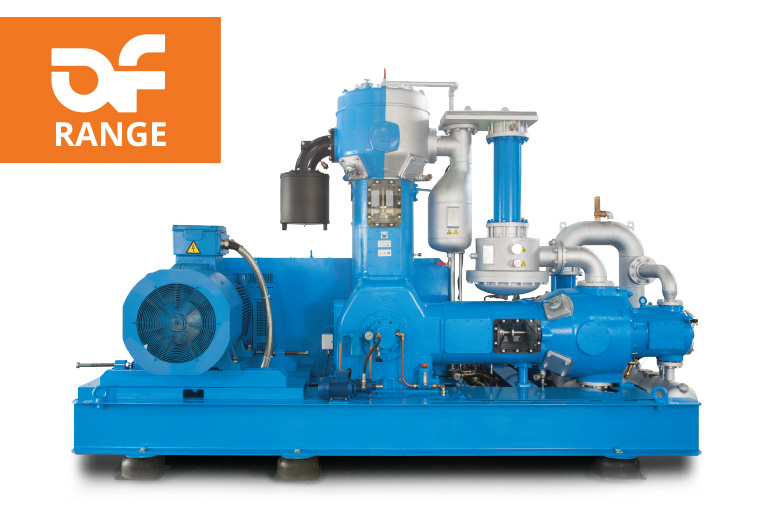

High pressure oil free air compressors
M2-series
MODEL Capacity
m3/h FAD
Capacity
CFM
Installed power
kW
 M 2 XS  150 88 30
 M 2 S  185 109 37
 M 2 A  225 132 45
CE2-CE24-L3-series
MODEL Capacity
m3/h FAD
Capacity
CFM
Installed power
kW
 CE 24 XS  315 185 55
 CE 24 S 425 250 75
 CE 24 A 510 300 90
 CE 24 B  600 353 110
 CE 24 C 700 412 132
 L 3 A 770 453 132
L4-series
MODEL Capacity
m3/h FAD
Capacity
CFM
Installed power
kW
 CE 46 S 910 536 160
 L 4 A 975 574 160
 CE 46 A 1160 683 200
L5-series
MODEL Capacity
m3/h FAD
Capacity
CFM
Installed power
kW
 L 5 XS 1260 742 200
 L 5 S 1330 783 220
 CE 46 C 1450 853 250
 L 5 A 1530 901 250
 L 5 B 1680 989 280
L6-series
MODEL Capacity
m3/h FAD
Capacity
CFM
Installed power
kW
L 6 1760 1036 280
L 6 A 1940 1142 315
CE 68 A 2100 1236 355
L 6 B 2170 1277 355
L7-to-L9-series
MODEL Capacity
m3/h FAD
Capacity
CFM
Installed power
kW
L 7 2330 1371 400
L 8 A 2500 1471 400
CE 68 B 2600 1530 450
L 8 B 2800 1648 450
L 9 A 3100 1825 500
L 9 B 3300 1942 550

Table showing capacities are expressed as Free Air Delivery (FAD) when measured in accordance to ISO 1217: 2009 with a nominal pressure of 35 bar. Motor Service Factor = 1.0.

Note: entire range of compressors is designed to operate between 20 & 40 bar pressure.

AF new range

Iso 1217 - Iso 8573-1

Air Quality according to ISO 8573. Class 2 or 1.4.1. Class 0 compliant.
Motor service factor = 1.0.

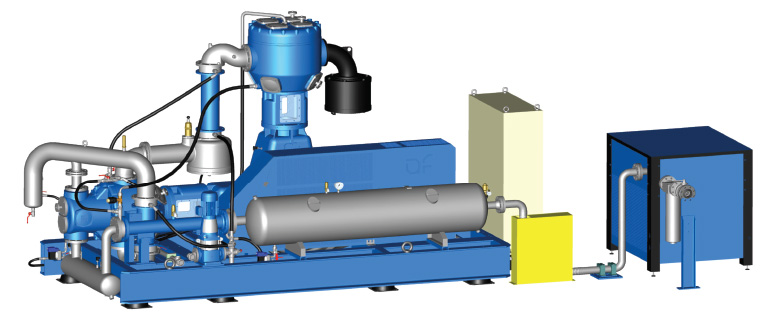

M, CE, L models, all on antivibration mounts.
Technical modification without prior notice. 2019 06 24.
