AF 80% heat recovery system

Scope of deliveryScope of delivery



Heat Recovery System 90°C including :

heat recovery system

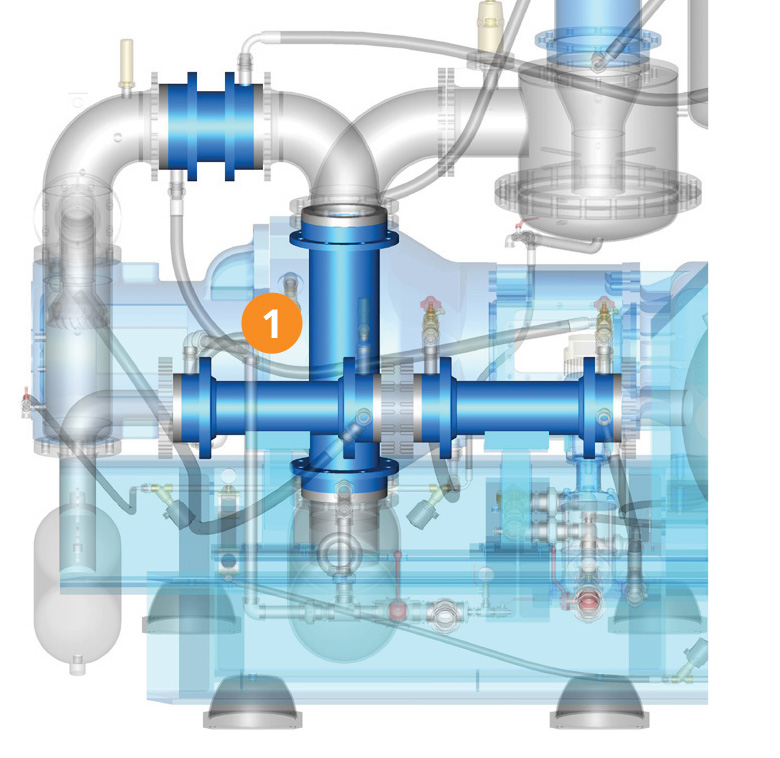

1Specific double cooler 2nd and 3rd stage. Special design for 1st stage intercooler.

2Internally adapted water circuit.

3The compressor runs with a smaller water pump with frequency inverter,”VSD”.

4The compressor runs with a smaller separate water cooling system.

5External Heat Exchanger Kit for easy connection to the customer system.

heat recovery system



Features & benefitsFeatures & benefits

Features based on L 5 model /200 kW.

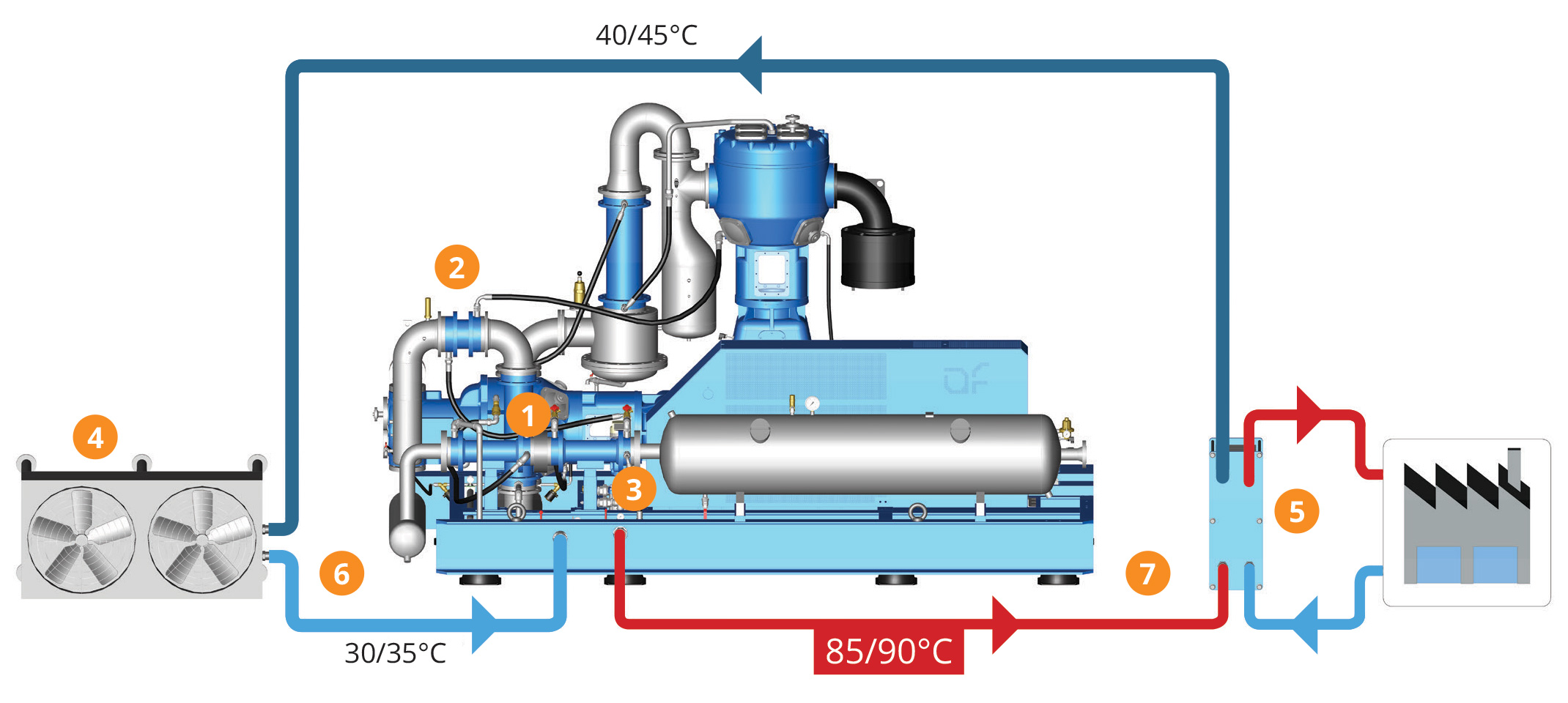

  • Temperature : 6 30-35°C water in  – between 85-90°c water out. 7
  • Power : heat recovered @ 40 bar on load is  ca.160 kW = ca.80% of the shaft power.
  • Water : Available quantity of water for Heat Recovery is ca. 2 m³/hour water flow for L5 model.
  • Due to HR a smaller separate cooling system  is used for the complete compressor system. 4

One year operation, 6000 running hours @ 0.05 € / kW Heat = 48.000 € savings.






AF 80% heat recovery system 40°C

Scope of deliveryScope of delivery



Heat Recovery System 40°C including :

External skid Heat Recovery System 40°C with stainless steel plate exchanger.

1Stainless steel heat exchanger, dismountable, with connecting flanges & water piping.

2 500 l water receiver , vertical with accessories mounted on the skid.

3

  •  Ready to use system, fully connected with explansion vessel and valves, temp. gauges…
  • Skid with plug and play connecting points , supplied loose with adaptable feet for easy connections to the water circuit of the customer.

Heat Recovery System 40°C

Features & benefitsFeatures & benefits

Features based on 200 kW. Either CE or L series

  • Temperature : water in : 29°C, water out available for HR 39°C
  • Power : heat recovered @ 40 bar on load is ca.160 kW = ca.80% of the shaft power.
  • Water : Available quantity of water for Heat Recovery Max 40°C Delta temp. 10°C = 15.2 m³/h.
