8 bar & 10 bar Oil Free Piston Compressors – OPC Range.

  • OPC-45-75-bar

    OPC 45-75 / 8 bar & 10 bar

    Nominal capacity from 7,2 to 12,8 m³/min FAD
    (272 to 452 CFM),
    motor power from 45 to 75 kW
    Motor service factor 1.0, capacities ISO 1217.

    More information

  • OPC-90-132-bar

    OPC 90-132 / 8 bar & 10 bar

    Nominal capacity from 15 to 23 m³/min FAD
    (530 to 812 CFM),
    motor power from 90 to 132 kW
    Motor service factor 1.0, capacities ISO 1217.

    More information

  • OPC-160-220-bar

    OPC 160-220 / 3,6-4 bar

    Nominal capacity from 39,8 to 46,5 m³/min FAD
    (1407 to 1642 CFM),
    motor power from 160 to 220 kW
    Motor service factor 1.0, capacities ISO 1217.

    More information

  • OPC-160-200-bar

    OPC 160-200 / 8 bar & 10 bar

    Nominal capacity from 24,2 to 32,1 m³/min FAD
    (855 to 1134 CFM),
    motor power from 160 to 200 kW
    Motor service factor 1.0, capacities ISO 1217.

    More information

  • OPC-280-355-bar

    OPC 250-355 / 8 bar & 10 bar

    Nominal capacity from 38,5 to 58 m³/min FAD
    (1360 to 2048 CFM),
    motor power from 250 to 355 kW
    Motor service factor 1.0, capacities ISO 1217.

    More information

  • OPC-M3-16-bar

    OPC M3 16 bar

    Nominal capacity from 2,8 m³/min FAD
    (100 CFM), motor power from 30 kW
    Motor service factor 1.0, capacities ISO 1217.

    More information




DESCRIPTION

  • Reliable standard Oil-Free compressed air from 8 bar &  10 bar from 45 to 355kW.
  • Low speed, two stage, water cooled piston compressors for heavy duty applications.
  • References throughout the world continuously ask for a 2-stage 8 bar and 10 bar oil free alternatives next to our standard PET application. Reliability, lifetime and energy efficiency are key criteria.
    Specific possibilities from 3 to 16 bar are available on request.



More info More info More info More info More info More info More info

Move your cursor over a bullet to get more info

AF Piston Compressors : Simple and Robust
DESIGNED FOR LONG LIFE and RELIABILITY
Piston Rods are made of a high resilient stainless steel and chromium plated to provide a hard wearing surface.

Cross heads
The ratio between the connecting rod length and crank radius (nearly 5) and the large pressure lubricated area of the crosshead and guides ensures optimum life.

Connecting rods
The white metal connecting rod main bearings are inherently long life items. All bearings are pressure lubricated by a gear driven pump.

Crankshaft
Is supported by two self aligning bearings having two rows of generously dimensioned rollers to ensure perfect alignment.

Connecting rods
The white metal connecting rod main bearings are inherently long life items. All bearings are pressure lubricated by a gear driven pump.

Cross heads
The ratio between the connecting rod length and crank radius (nearly 5) and the large pressure lubricated area of the crosshead and guides ensures optimum life.

AF Piston Compressors : Simple and Robust
DESIGNED FOR LONG LIFE and RELIABILITY
Piston Rods are made of a high resilient stainless steel and chromium plated to provide a hard wearing surface.

Energy : Piston is still the best !
Costs : Piston is once again
competitive !

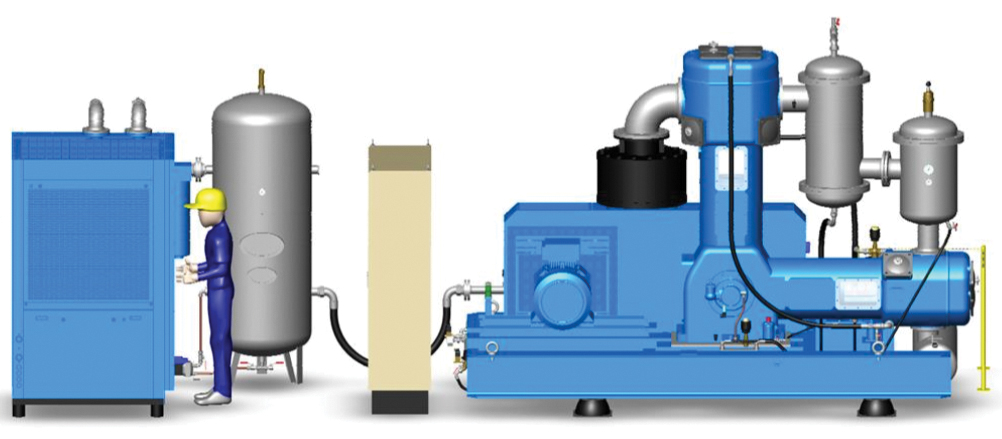

A complete Range of Low Pressure compressors 8 bar & 10 bar bar.
oil free piston complete packages for industry and PET industry, complementary to the 40 bar PET units…

FEATURES

  • High temperature resistant operation
  • Extreme reliability like our 40bar compressor design
  • Constant high efficiency throughout the lifetime
  • Robustness

BENEFITS

Low Total Cost of Ownership, low energy, low maintenance cost.

Energy savings due to:

  • Low idle consumption: 10% of full power.
  • Lower maximum power.
  • Superior regulation between idle and full load.

Only preventive maintenance with limited spare parts, no block replacement needed!

OPC

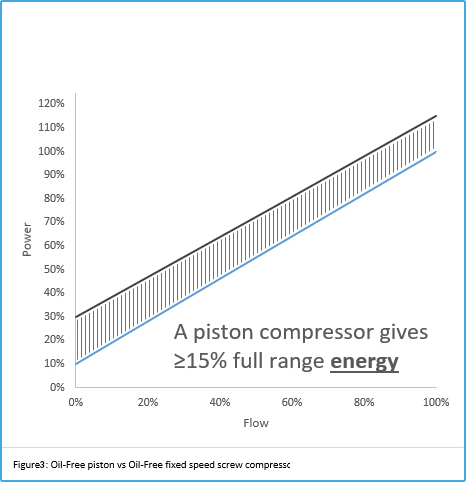

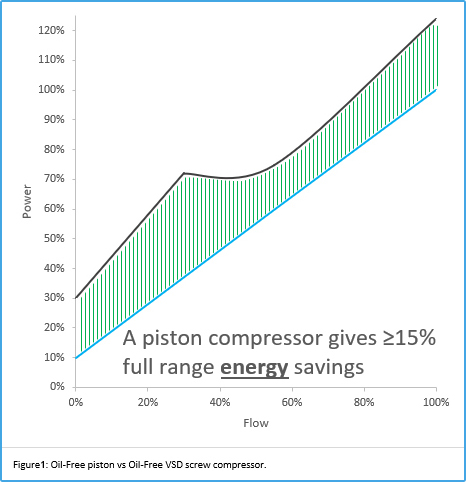

CAPACITY REGULATION EFFICIENCY

OPC graphic  OPC graphic

Adjustable air Flow System: AFS: Accurate air flow adaption. 0-50-100% of full flow.

OPTIONS



Download our OPC brochure
