Separate cooling systems ans accessories

Evaporative closed loop cooling towers :

Evaporative closed loop cooling towersFor temperatures above 32°C.
Cooling capacities are selected to suit the local site wet bulb temperature, up to 30°C ( Wet Bulb ) to provide the most efficient cooling system. The tower and the water pump are controlled by the compressor’s electrical cabinet.
Option : two speeds fan motor for winter and summer, antifreeze protections, tracing.

Radiator cooling systems.

Radiator cooling systemsSelected for maximum ambient temperatures up to 32°C, other selections accepting temporary heat peaks up to 36°C and 40°C during some hours per day.

These specific versions are equipped with an automatic spray system with thermostatic control The radiator fans and the water pump are controlled by the compressor’s electrical cabinet.

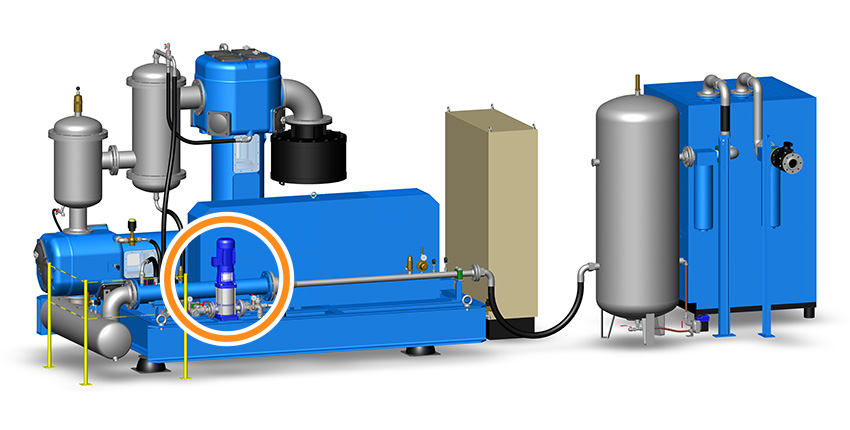

The water pump.

Compressor OPC

is mounted on the compressor’s base plate.

The cooling system, its functions (automatic spray system for radiators and antifreeze protections for cooling towers) and the water circulating pump are thermostatically monitored by the compressor’s electrical cabinet.

If several units are installed in parallel, the water pumps can be installed on a separate base-frame.

Optional connection package.

Water and electricity connections between the compressor+ pump and the cooling system can be supplied. Rigid black steel piping and elbows, electrical cables.
