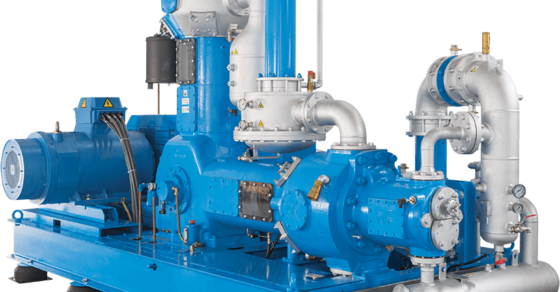

15 - 40 bar L5 series
1260 to 1680 m³/h FAD
Caracteristics
-
Nominal capacity
from 1260 to 1680 m³/h
-
FAD
742 to 989 CFM
-
Motor power
from 200 to 280 kW
-
MSF
Motor Service Factor 1.0
-
Capacities ISO 1217
| Model | Capacity m3/h FAD | Capacity CFM | Installed power kW |
|---|---|---|---|
| L5 XS | 1260 | 742 | 200 |
| L5 S | 1330 | 783 | 220 |
| CE 46 C | 1450 | 853 | 250 |
| L 5 A | 1530 | 901 | 250 |
| L 5 B | 1680 | 989 | 280 |
Options
Design
Recovery
Control and Monitoring
Regulation
40 bar Certifications & Equipment Options
Electrical options
Protection for hot and cold environments
Separate cooling systems
Optimal operating in hot and tropical areas
Electrical motor / Service factor 1.0
