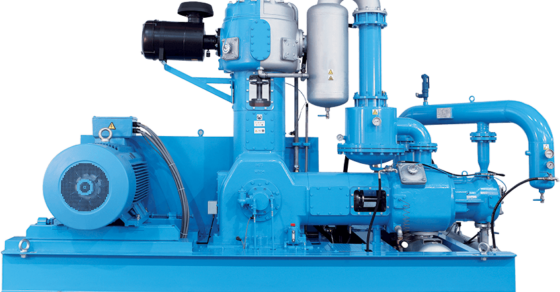

15 - 40 bar L4 series
975 to 1100 m³/h FAD
Caracteristics
-
Nominal capacity
from 975 to 1100 m³/h
-
FAD
574 to 647 CFM
-
Motor power
from 132 to 160 kW
-
MSF
Motor service factor 1.0
-
Capacities ISO 1217
| Model | Capacity m3/h FAD | Capacity CFM | Installed power kW |
|---|---|---|---|
| L 4 A | 975 | 574 | 160 |
| L 4 B | 1100 | 647 | 185 |
| CE 46 A | 1160 | 683 | 200 |
Options
Design
Recovery
Control and Monitoring
Regulation
40 bar Certifications & Equipment Options
Electrical options
Protection for hot and cold environments
Separate cooling systems
Optimal operating in hot and tropical areas
Electrical motor / Service factor 1.0
