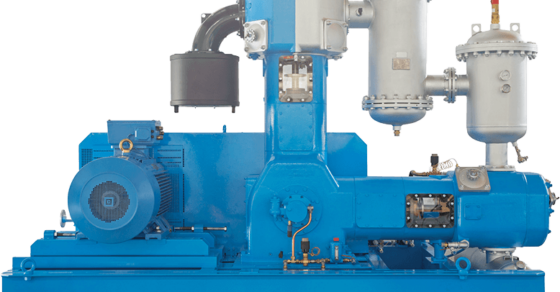

8 & 10 bar OPC 45-75 / 8 bar & 10 bar
7,0 to 13,8 m³/min FAD
Caracteristics
-
Nominal capacity
from 7,0 to 13,8 m³/min
-
FAD
247 to 486 CFM
-
Motor power
from 45 to 75 kW
-
MSF
Motor Service Factor 1.0
-
Capacities ISO 1217
| Model | Capacity m3/min | Capacity m3/h FAD | Capacity CFM | Installed power kW |
|---|---|---|---|---|
| OPC 45 - 8 | 7,7 | 462 | 272 | 45 |
| OPC 55 - 8 | 9,5 | 570 | 335 | 55 |
| OPC 75 - 8 | 12,5 | 750 | 441 | 75 |
| OPC 75b - 8 | 13,8 | 825 | 486 | 75 |
| OPC 45 - 10 | 7,0 | 420 | 247 | 45 |
| OPC 55 - 10 | 8,7 | 520 | 306 | 55 |
| OPC 75 - 10 | 11,7 | 700 | 412 | 75 |
| OPC 75b - 10 | 12,5 | 750 | 441 | 75 |
Options
Design
Recovery
Control and Monitoring
Regulation
40 bar Certifications & Equipment Options
Electrical options
Protection for hot and cold environments
Separate cooling systems
Optimal operating in hot and tropical areas
Electrical motor / Service factor 1.0
