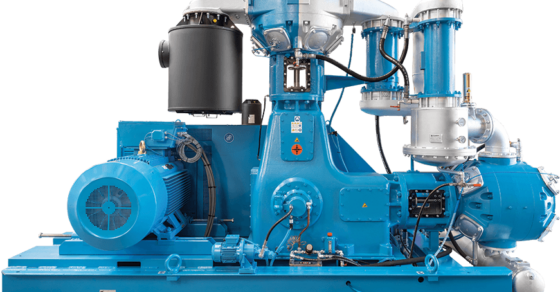

8 & 10 bar OPC 250-355 / 8 bar & 10 bar
38,5 to 58 m³/min FAD
Caracteristics
-
Nominal capacity
from 38,5 to 58 m³/min
-
FAD
1360 to 2048 CFM
-
Motor power
from 250 to 355 kW
-
MSF
Motor Service Factor 1.0
-
Capacities ISO 1217
| Model | Capacity m3/min | Capacity m3/h FAD | Capacity CFM | Installed power kW |
|---|---|---|---|---|
| OPC 250 - 8 | 42,5 | 2550 | 1501 | 250 |
| OPC 280 - 8 | 47,1 | 2825 | 1663 | 280 |
| OPC 315 - 8 | 53,0 | 3180 | 1872 | 315 |
| OPC 355 - 8 | 58,0 | 3480 | 2048 | 355 |
| OPC 250 - 10 | 38,5 | 2310 | 1360 | 250 |
| OPC 280 - 10 | 42,7 | 2560 | 1507 | 280 |
| OPC 315 - 10 | 48,0 | 2880 | 1695 | 315 |
| OPC 355 - 10 | 54,0 | 3240 | 1907 | 355 |
Options
Design
Recovery
Control and Monitoring
Regulation
40 bar Certifications & Equipment Options
Electrical options
Protection for hot and cold environments
Separate cooling systems
Optimal operating in hot and tropical areas
Electrical motor / Service factor 1.0
