Home Oil free piston compressors 8 & 10 bar Oil free compressors
8 & 10 bar

8 & 10 bar Oil free compressors

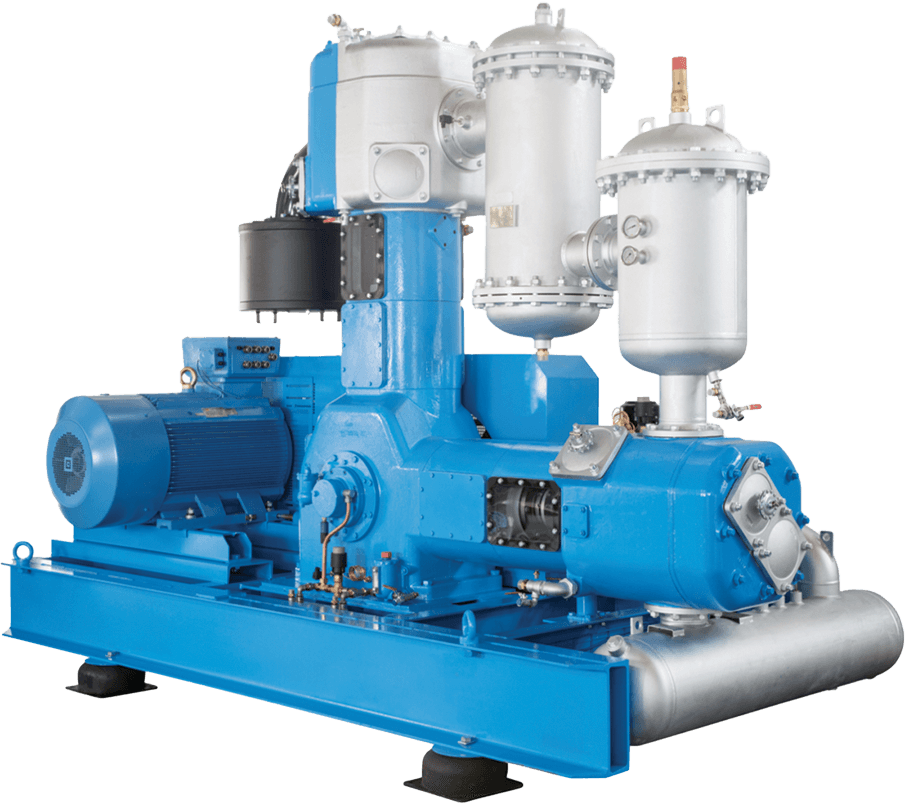

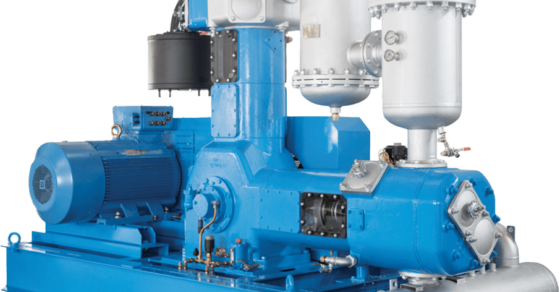

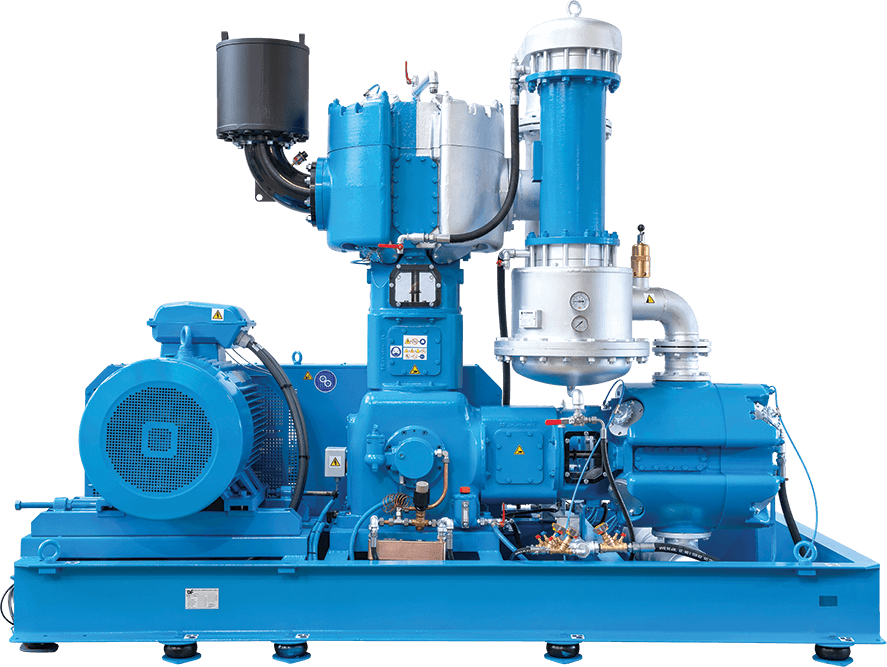

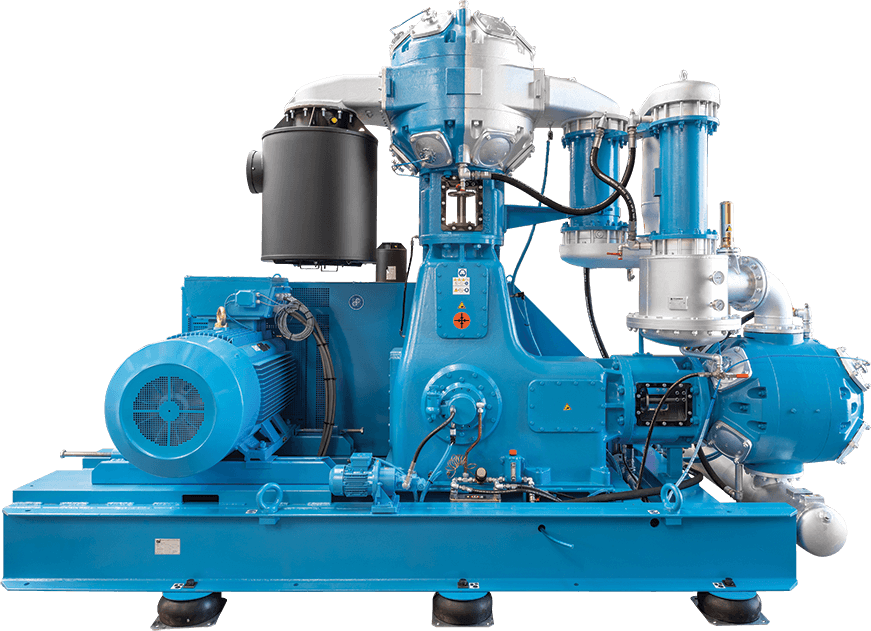

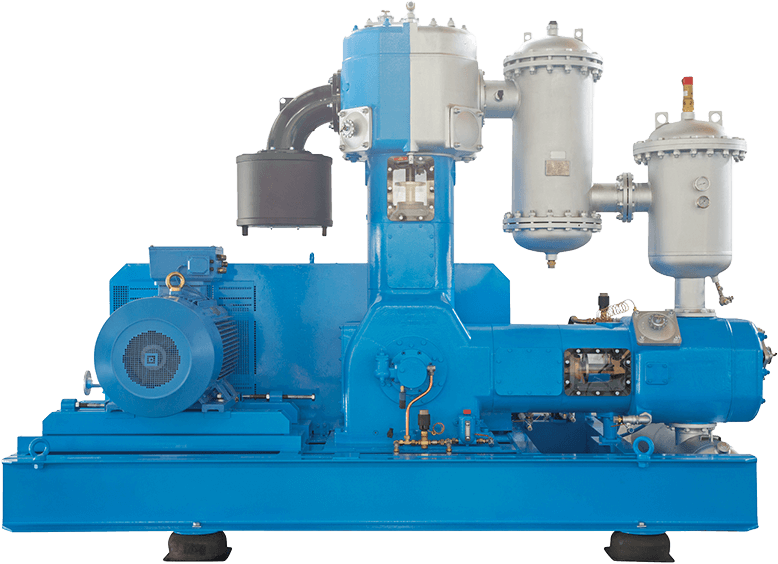

The 8 & 10 bar oil free compressors are high efficient 2-stage, 2 cylinders reciprocating water cooled air compressors mounted on a base plate equipped with anti-vibration mounts and includes:

  • Electric motor with 1,0 Service Factor and V-belt transmission
  • Intercoolers between each stage and an after-cooler
  • Low pressure hot galvanised air receiver

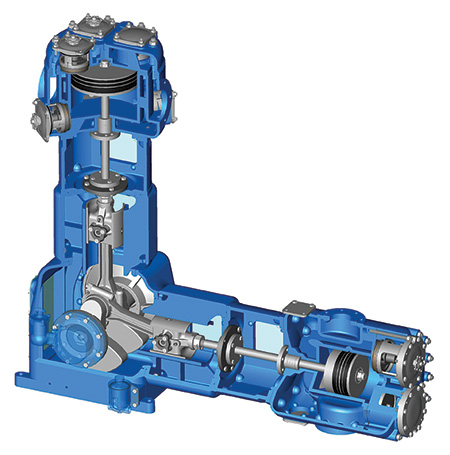

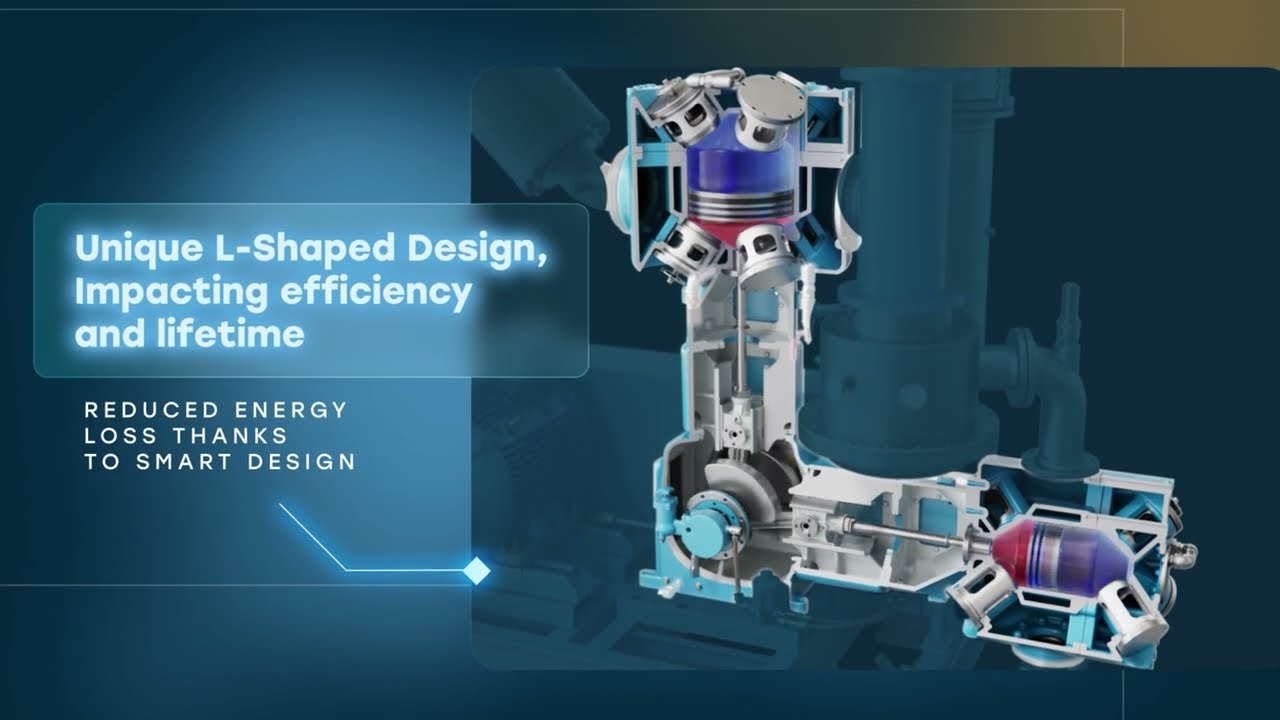

Optimum L shape design : Durable and Efficient

Engineered for Longevity and Reliability

  • Piston Rods: Constructed from high-resilience stainless steel with a chromium-plated finish for enhanced durability and a wear-resistant surface.
  • Crossheads: The optimal ratio between connecting rod length and crank radius (nearly 5:1), along with a large pressure-lubricated crosshead area, ensures maximum lifespan.
  • Connecting Rods: The main bearings, made from white metal, are designed for extended durability and longevity.
  • Bearings: All bearings are pressure-lubricated by a gear-driven pump for consistent performance.
  • Crankshaft: Supported by two self-aligning bearings with double-row rollers for perfect alignment. Counterweights ensure excellent balance, with rotational speeds ranging from 400 to 750 rpm.
Piston Opc
Low Maintenace Costs Orange
Direct savings.

Low costs for maintenance, Lower. Energy Consumption short and long term pay back.

Efficient Design Orange
Easy to maintain

Simple mechanics to maintain

Roi Web
ROI

Rapid Return on Investment.

Efficient Web
Efficient

Long lasting performance and low operational costs compared to other technologies.
