15 – 40 bar Oil free PET compressors

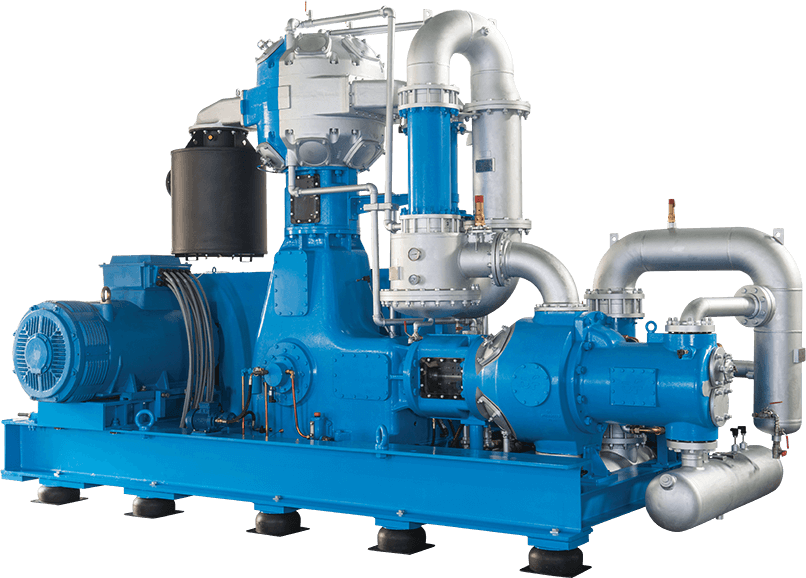

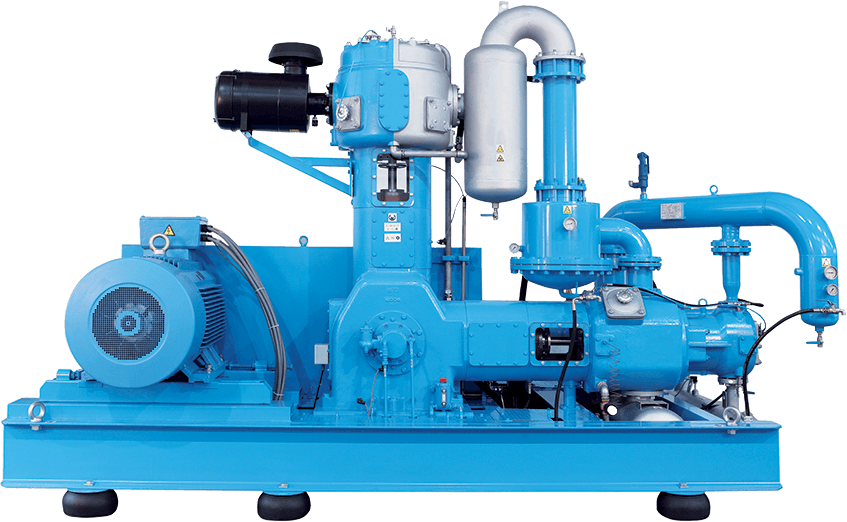

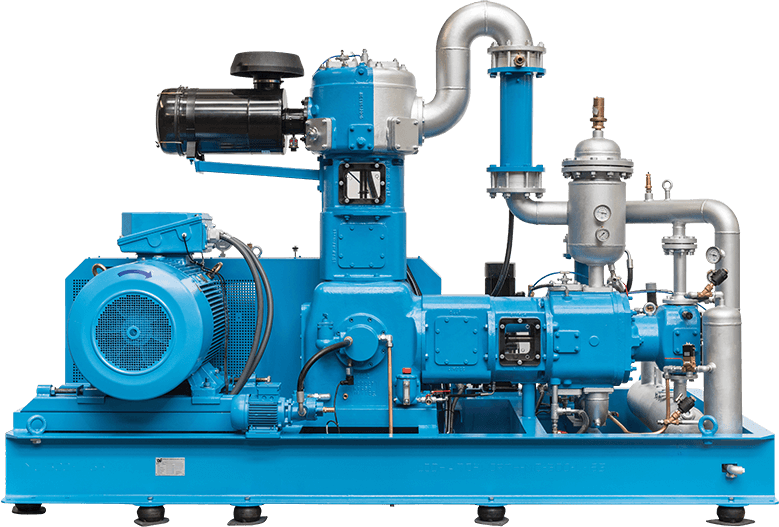

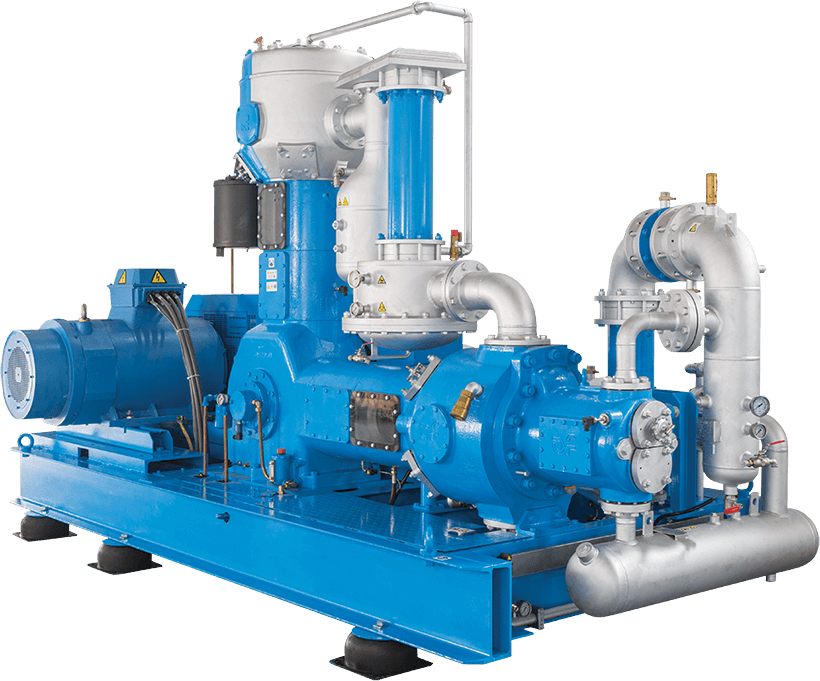

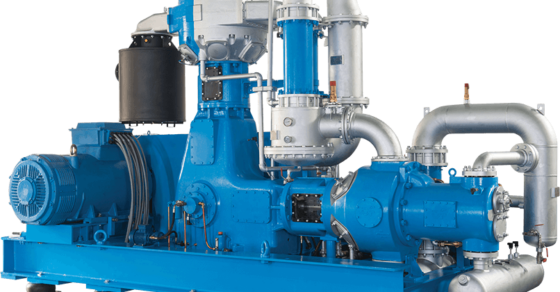

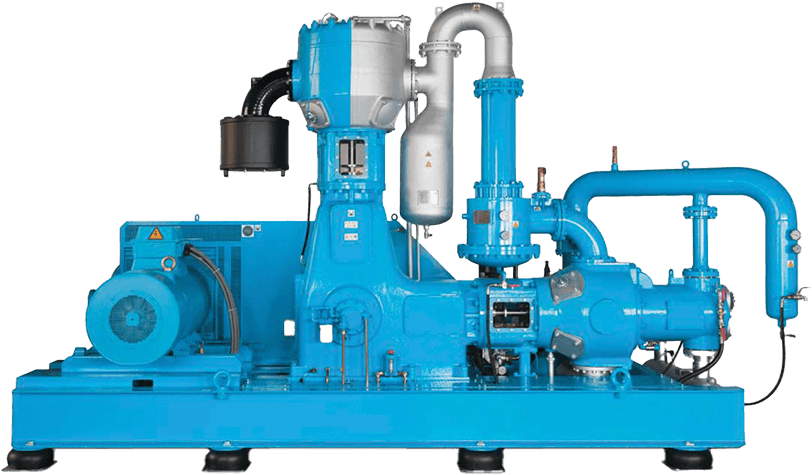

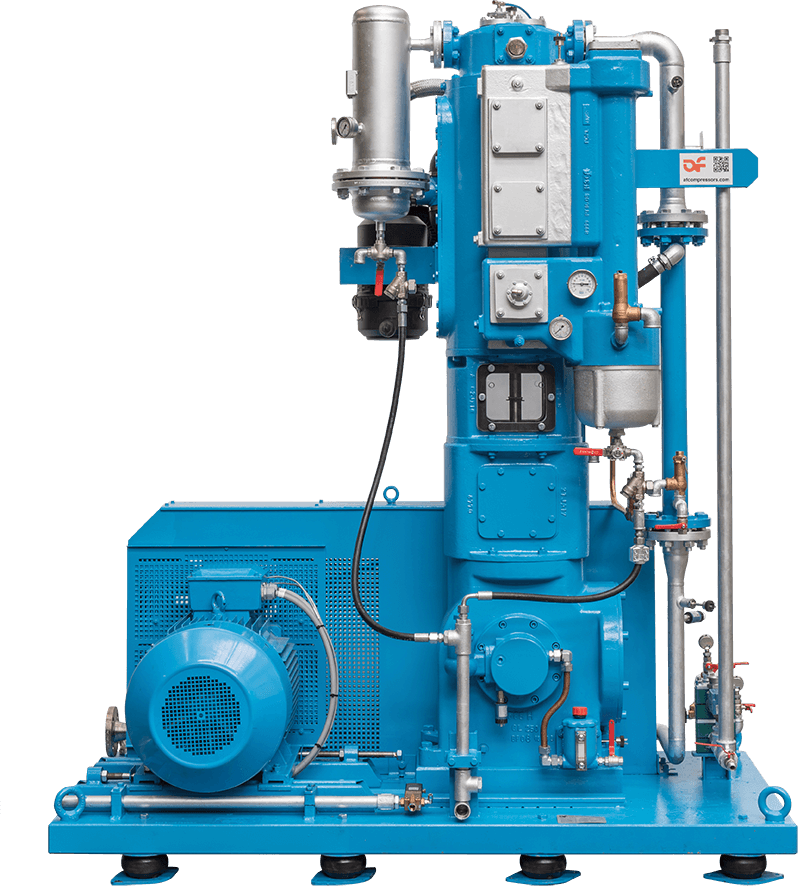

The 15-40 bar oil free PET compressor is a high efficient 3-stage, 3 cylinders reciprocating water cooled air compressor mounted on a base plate equipped with anti-vibration mounts and includes:

  • Electric motor with 1,0 Service Factor and V-belt transmission
  • Intercoolers between each stage and an after-cooler
  • High pressure hot galvanised air receiver

AF Delivers the Lowest Energy Consumption, Ensuring Direct Savings for Your Facility

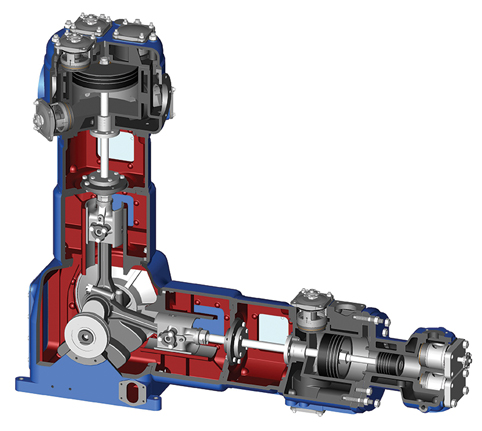

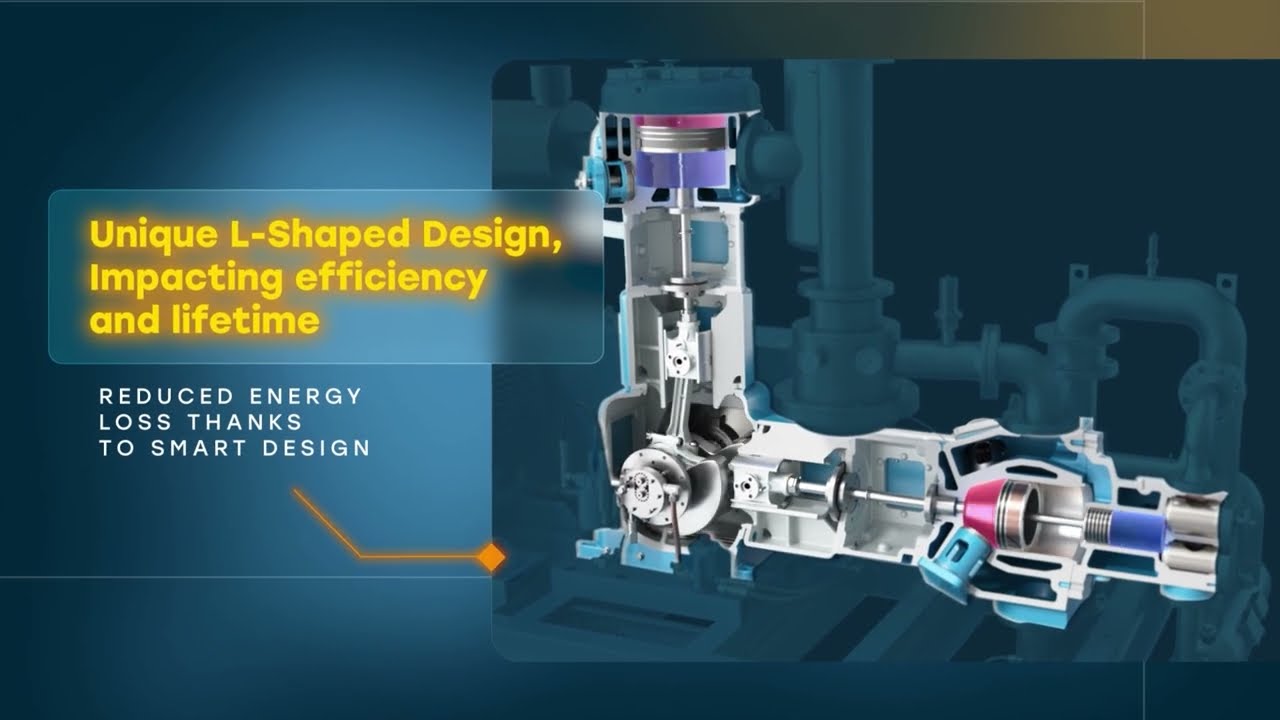

  • Efficient Design: Only two cross-head assemblies, two connecting rods, and related bearings, with no piston rod packing on the 3rd stage, eliminating the need for sealing against 40 bar pressure.
  • Simplified Stages: The 2nd and 3rd stages are single-acting and require fewer valves, enhancing efficiency.
  • Optimized Performance: Smaller, horizontally positioned 2nd and 3rd stages extend piston ring life.
  • Reduced Energy Losses: Fewer valves contribute to lower energy consumption.
  • Long-Lasting Components: Low friction and slow speeds (340 rpm to 755 rpm) ensure extended component life and reliable performance.
Equerre
Intermediate Pressures Picto

Discover our intermediate pressures for more flexibility
